Our Solution
GES combines advanced hardware installed directly inside electrical panels with intelligent monitoring and analysis software.
It continuously measures and analyzes electrical data, detects developing faults at an early stage, and provides automatic alerts and a complete event history.
Together, these capabilities create a complete electrical monitoring solution — giving facilities the visibility and intelligence needed to move from reactive maintenance toward predictive power operation.
The process
A simple process. A powerful result.
Start with one critical panel and expand the system over time as needed. GES Controllers and GES Sensors can be installed in any electrical panel — integrated into new panels during manufacturing or retrofitted into existing installations.
Connect to the GES cloud platform or deploy locally on-site — according to your IT and security requirements.
GES begins monitoring, recognising and learning the electrical behaviour of your facility.
Fault thresholds and detection rules are continuously applied, ensuring early identification of developing electrical faults.
GES AI automatically delivers engineering insights and recommended actions. ESP expert support is always available when you need it.
Now GES AI reads the early warning signs for you — so you can act early and stay in control. You get the insight. You make the decision.
Continuous monitoring. Early detection. Maximum uptime.Protect your people, your assets, and your business.
Inside the software
GES ships with a full operations console — high-resolution current monitoring, a live single-line view with per-connection health, waveform capture with FFT analysis, and energy accounting with automatic billing.

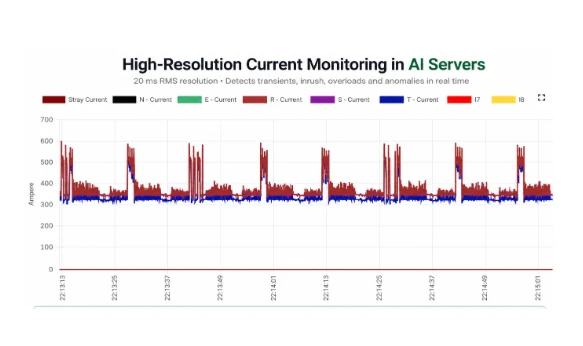

20 ms RMS resolution on every phase, neutral, earth and stray current — transients, inrush, overloads and anomalies are visible in real time instead of averaged away.

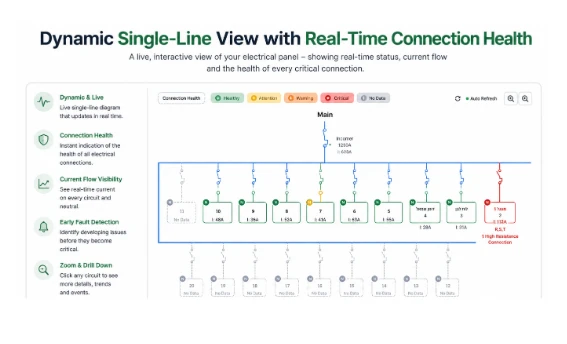

The whole board as an interactive diagram: healthy, attention, warning, critical or no-data on every circuit, with current flow and a developing high-resistance connection flagged in place.

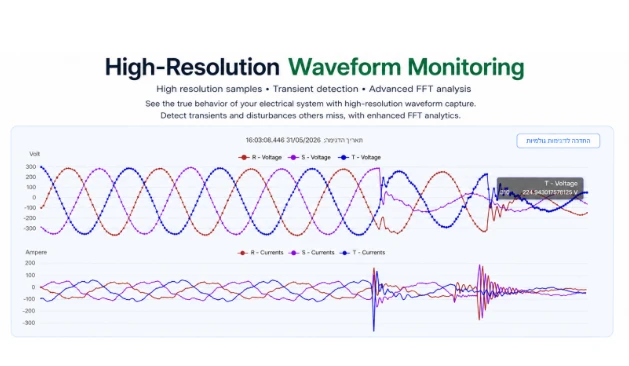

High-resolution samples of voltage and current on all three phases, so transients and disturbances conventional monitoring misses are captured and analysed rather than inferred.

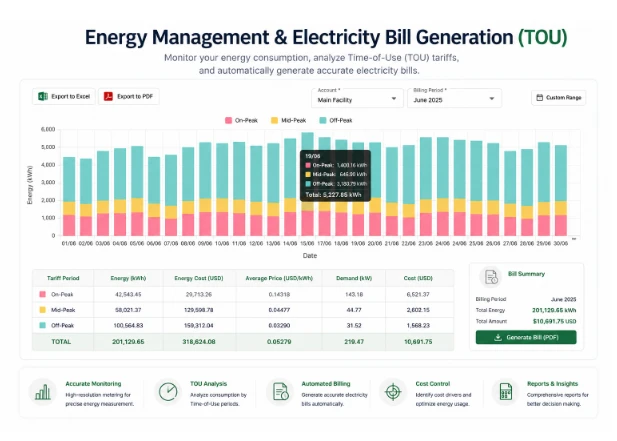

Consumption analysed against on-peak, mid-peak and off-peak tariffs, with cost control, reporting and an accurate electricity bill generated straight out of the measured data.
Screens are from the live GES console.
Because monitoring the electrical system is only the beginning.
GES combines high-resolution measurements, advanced algorithms and AI to detect developing faults early, understand their impact and tell you exactly what to do.
| Capability | Conventional Monitoring | PQ Analyzer | GES AI |
|---|---|---|---|
| High-Resolution Monitoring20 ms RMS | —Not available | Limited200 ms – 3 s RMS | Included |
| Continuous Monitoring | Included | Included | Included |
| Advanced Power Quality Analysis | Limited | Included | Included |
| Developing Fault Detection | Limited | Limited | Included |
| Loose Connection Detection | —Not available | —Not available | Included |
| Deterioration & Trend Analysis | —Not available | Limited | Included |
| AI-Powered Analysis | —Not available | —Not available | Included |
| Automatic Engineering Insights | —Not available | —Not available | Included |
| Recommended Action | —Not available | —Not available | Included |
| Full Electrical Infrastructure Visibility | Limited | Limited | Included |
| Modular – Start with One Panel | Varies | Varies | Included |
Your Digital Electrical Engineer turns real-time electrical data into engineering intelligence that helps you make confident decisions.
Tell ESP about your facility and we will scope the install, the connection method and the first alerts.
